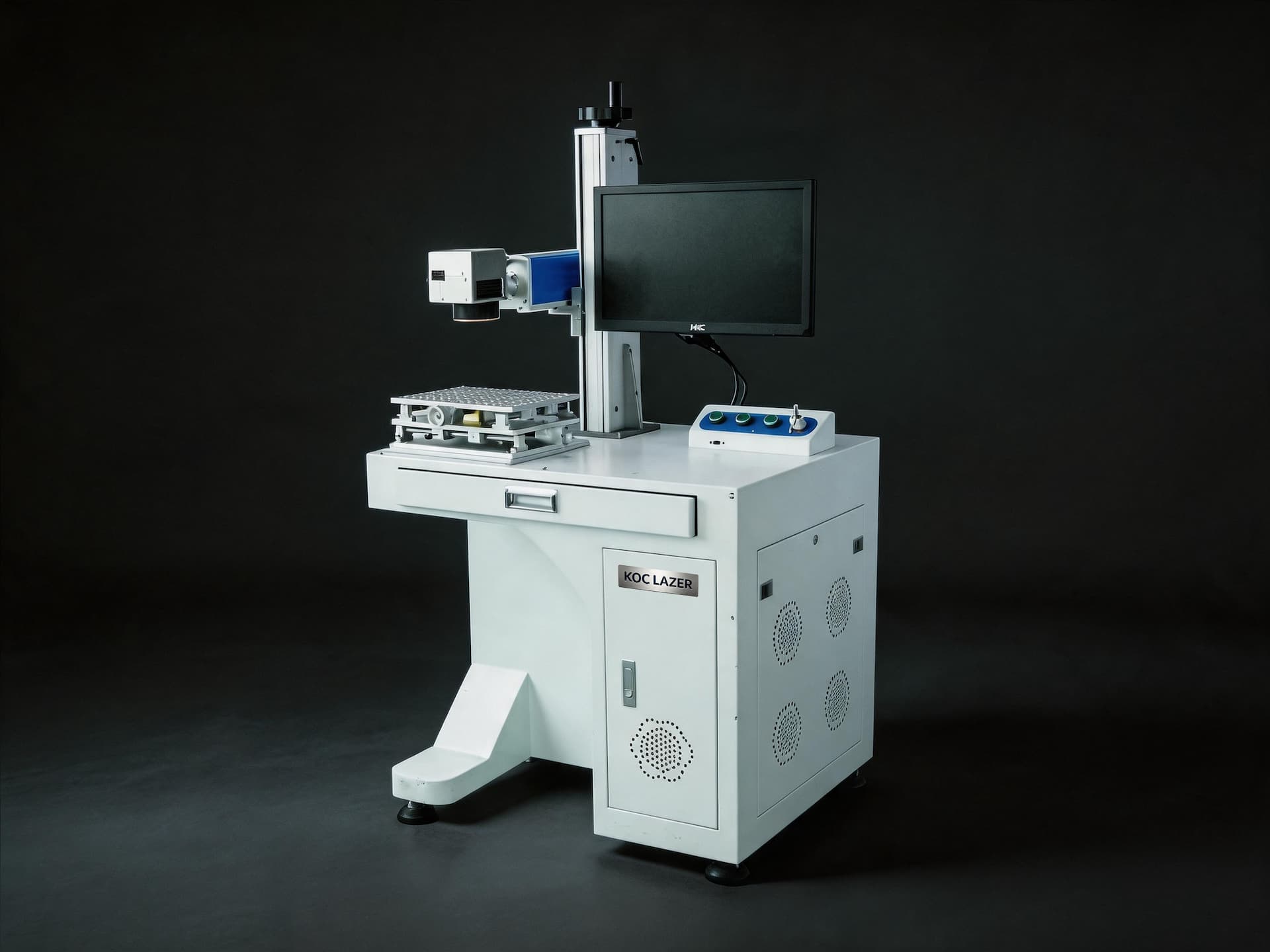

Fiber Laser Marking Machine
High-speed precision marking for metals and engineered plastics. The industry standard for permanent, high-contrast marks.
Our Fiber Laser Marking Machines deliver exceptional performance for industrial metal marking applications. Using advanced fiber laser technology, these systems provide permanent, high-contrast marks on a wide range of materials including stainless steel, aluminum, brass, copper, titanium, and engineered plastics.
Available in both portable and cabinet-style configurations, our fiber laser markers are designed for 24/7 operation in demanding production environments. With marking speeds up to 12,000 mm/s and a service life exceeding 100,000 hours, these machines deliver unmatched reliability and low total cost of ownership.
Key applications include serial number engraving, barcode/QR code marking, logo branding, UDI medical device marking, and automotive part traceability.
Key Features
Technical Specifications
| Parameter | Specification |
|---|---|
| Laser Type | Fiber Laser (Ytterbium-doped) |
| Laser Power | 20W / 30W / 50W / 100W |
| Wavelength | 1064 nm |
| Marking Area | 110×110mm / 200×200mm / 300×300mm |
| Marking Speed | ≤ 12,000 mm/s |
| Minimum Line Width | 0.01 mm |
| Repetition Accuracy | ±0.001 mm |
| Cooling Method | Air Cooling |
| Power Supply | AC 220V / 50-60Hz |
| Operating System | Windows 10/11 |
| File Formats | AI, DXF, PLT, BMP, JPG, PNG |
| Machine Dimensions | 800×650×1450 mm (Cabinet) |
Applications
Interested in this Fiber Laser Marking Machine?
Contact our team for pricing, technical specifications, and customization options.
