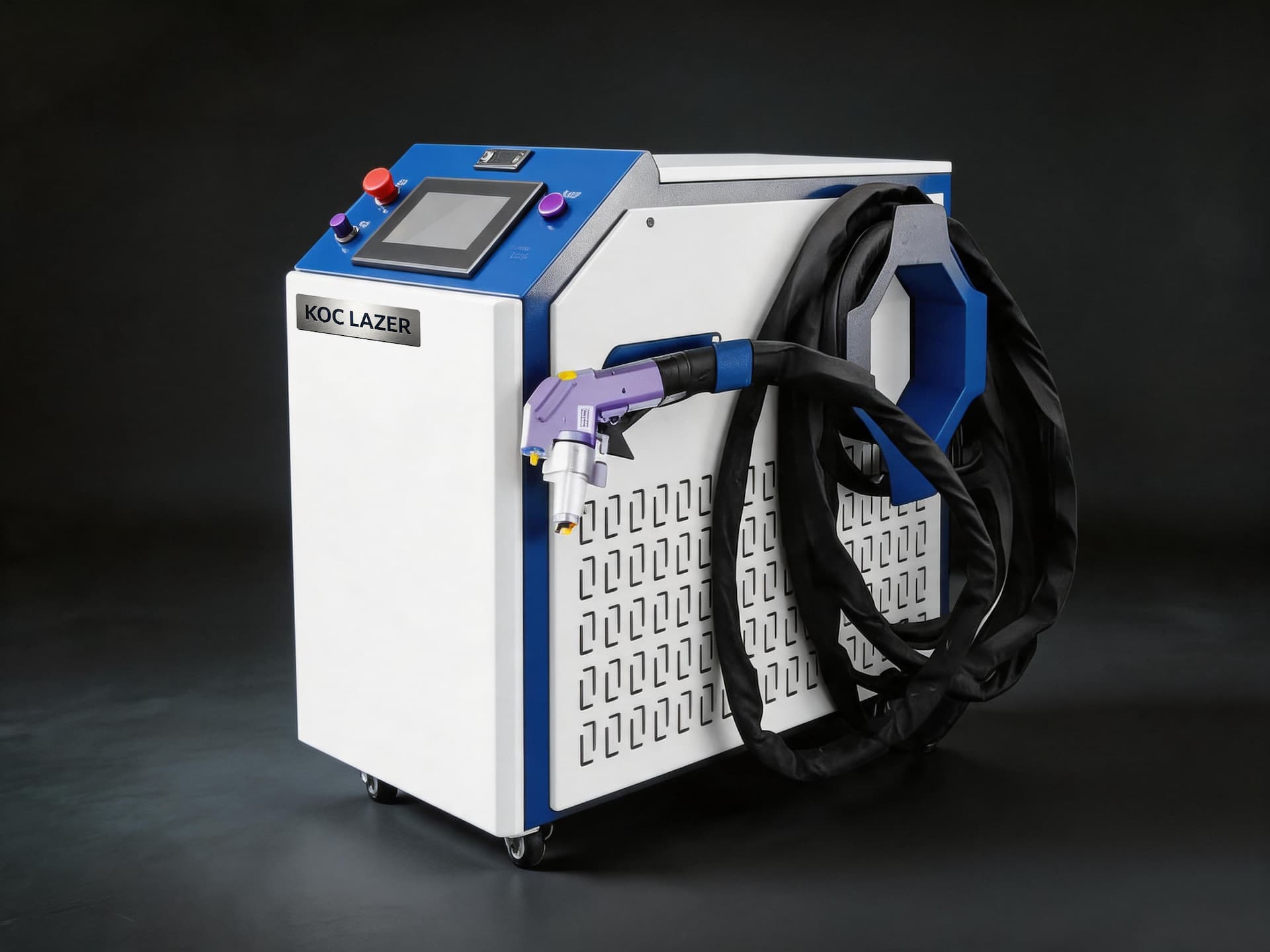

Portable Handheld Laser Cleaning Machine
Rust, paint, oil & oxide removal without chemicals or media blasting. Portable, eco-friendly surface preparation for metals, stone, and composites.
Our Portable Handheld Laser Cleaning Machines deliver powerful, eco-friendly surface preparation without chemicals, abrasive media, or water. Using pulsed fiber laser technology, these handheld systems instantly vaporize rust, paint, oil films, oxide layers, and other contaminants from metal, stone, and composite surfaces — leaving the substrate completely intact.
The portable design features an ergonomic handheld cleaning head connected to a compact control unit via a flexible fiber optic cable. At just 0.7 kg, the cleaning head is comfortable for extended operation, while adjustable pulse parameters allow fine-tuning for delicate restoration or aggressive industrial cleaning.
With no consumables, no waste media disposal, and minimal maintenance, laser cleaning offers the lowest total cost of ownership among all surface preparation methods. It is the preferred choice for aerospace MRO, automotive refurbishment, mold maintenance, and heritage restoration.
Key Features
Technical Specifications
| Parameter | Specification |
|---|---|
| Laser Type | Pulsed Fiber Laser (MOPA) |
| Laser Power | 100W / 200W / 300W / 500W |
| Wavelength | 1064 nm |
| Cleaning Head Weight | ~0.7 kg |
| Pulse Frequency | 1-4000 kHz (adjustable) |
| Cleaning Width (single pass) | Up to 120 mm (200W) / 200 mm (500W) |
| Max Cleaning Efficiency | Up to 15 m²/h (500W) |
| Fiber Cable Length | 5m / 10m / 15m |
| Cooling Method | Air Cooling |
| Power Supply | AC 220V / 50-60Hz |
| Control Interface | Touchscreen + handheld trigger |
| Machine Dimensions | 600×450×850 mm (mobile cart) |
Applications
