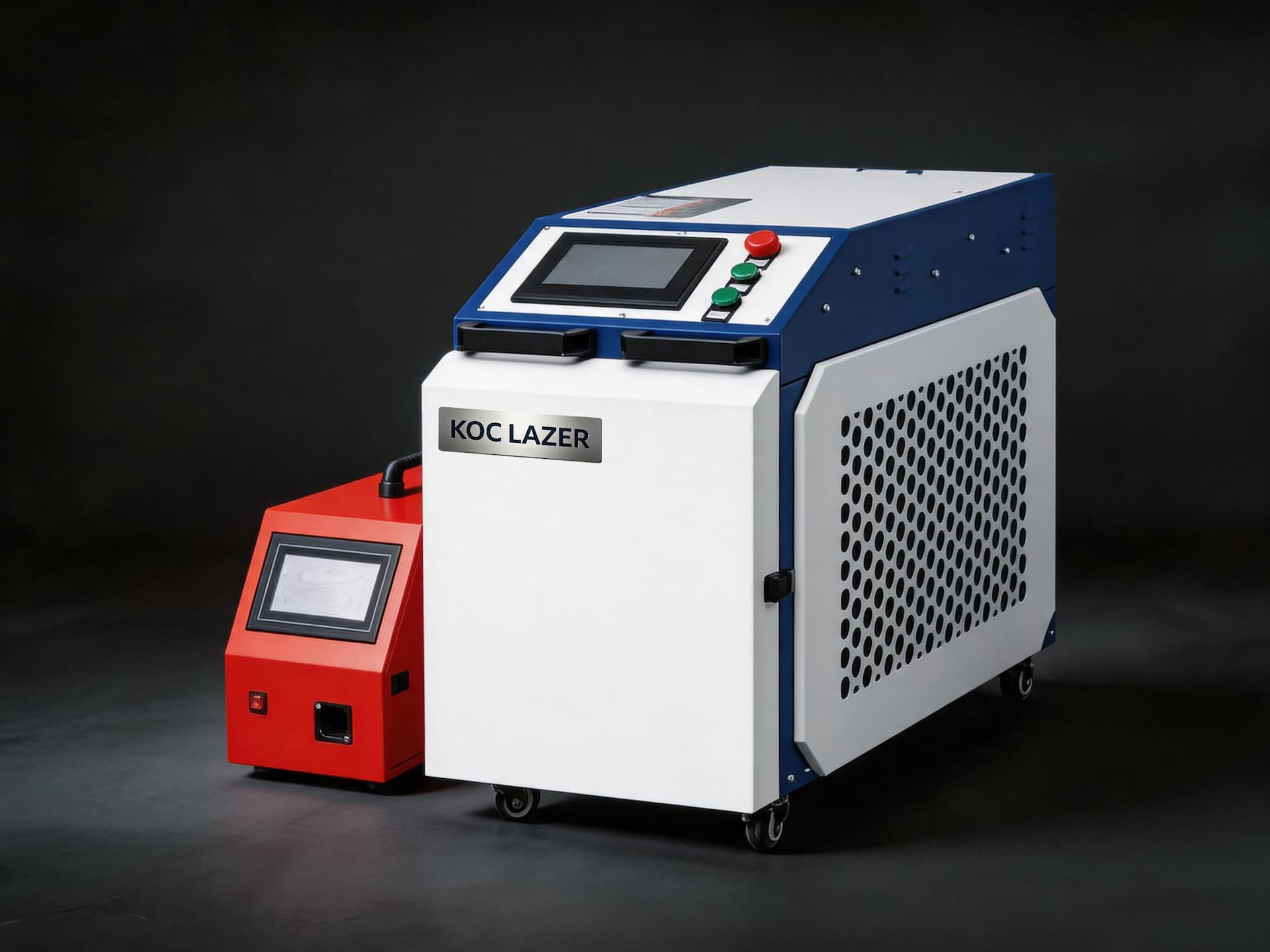

Handheld Fiber Laser Welding Machine
Fast, clean, distortion-free welding. 4x faster than TIG with no consumables. Handheld flexibility meets industrial precision.
Our Handheld Fiber Laser Welding Machines revolutionize metal joining. Combining a high-power fiber laser source with an ergonomic handheld welding head, these systems deliver weld speeds up to 4 times faster than traditional TIG welding — with minimal heat input, near-zero distortion, and no filler material required in most applications.
The intuitive swing-welding mode allows even novice operators to produce professional-quality welds after minimal training. Wire feed capability is included for gap filling and reinforcement applications.
Dual-function models also support laser cleaning mode — remove rust, paint, and oxide layers with the same machine before welding. This all-in-one capability dramatically reduces equipment investment and workshop footprint.
Key Features
Technical Specifications
| Parameter | Specification |
|---|---|
| Laser Type | Fiber Laser (CW) |
| Laser Power | 1000W / 1500W / 2000W / 3000W |
| Wavelength | 1080 nm |
| Welding Head Weight | ~0.8 kg |
| Welding Speed | Up to 120 mm/s |
| Max Penetration (SS) | Up to 4mm (1500W) / 6mm (3000W) |
| Swing Width | 0-5 mm (adjustable) |
| Wire Feed Speed | 0-6 m/min |
| Fiber Cable Length | 5m / 10m / 15m |
| Cooling Method | Water Chiller (built-in) |
| Power Supply | AC 220V / 380V (model dependent) |
| Cleaning Mode Width | Up to 80mm (single pass) |
Applications
